Chuck

New Bridgewerks Power Supply

Recommended Posts

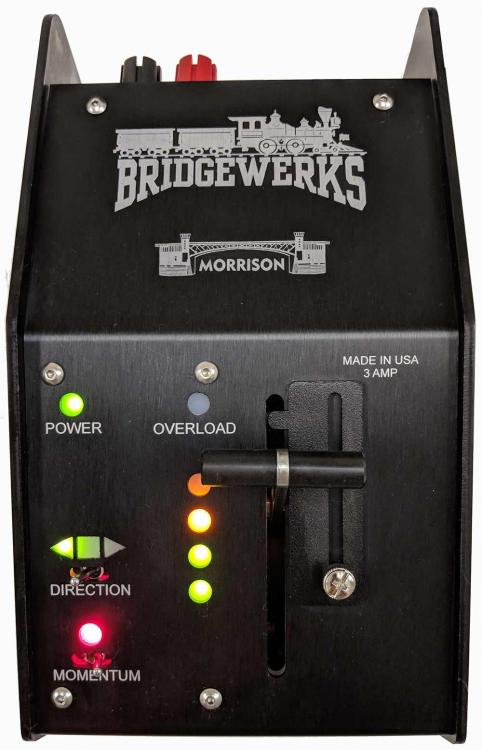

I see Bridgewerks has a new power supply listed on their website named "Morrison".



I do like the black case and lights on this thing :Slightly_Smiling_Face_Emoji(24x24):

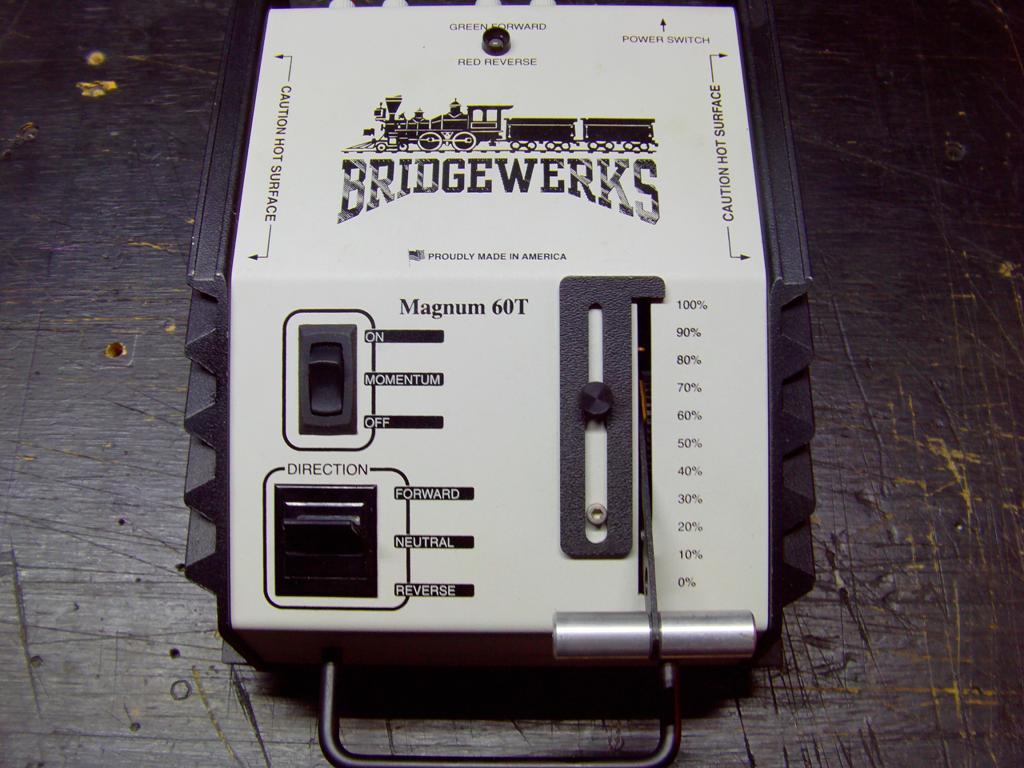

On my workbench I use the older predecessor model to the Morrison...The Magnum 60T.

I call it my Baby Bridgewerks as it's also rated 3 amps which is fine for bench testing various projects without getting into trouble.

Now if they'd just bring back an updated version of the MAG25TDR or PowerMag in a black case :Thumbs_Up_Hand_Sign_Emoji_large(24x24):




Share this post


Link to post
Share on other sites


Hi Chuck

Ray has eliminated my USA Power 10 transformers for my new 10 foot test track and  or  my rollers.



I have  PS2 and PS3 engines and want the ability to test with a complete DCS system (TIU and REMOTE).

Do you run DCS with PS2 and PS3 engines for testing?



If so do you think the new "Morrison" will work as well as your Magnum 60T.







Thanks for any information.



Larry W. Peterson

Erwin, TN






Share this post


Link to post
Share on other sites


Ray

I'm certainly interested in any info you might say . I'm hunting a bridgwerks product for my test bench and Chucks post came up with perfect timing on the subject.:Slightly_Smiling_Face_Emoji(24x24):

Larry

Share this post


Link to post
Share on other sites

On 9/21/2018 at 5:51 PM, Larry Sr. said:

Hi Chuck

Ray has eliminated my USA Power 10 transformers for my new 10 foot test track and  or  my rollers.



I have  PS2 and PS3 engines and want the ability to test with a complete DCS system (TIU and REMOTE).

Do you run DCS with PS2 and PS3 engines for testing?



If so do you think the new "Morrison" will work as well as your Magnum 60T.







Thanks for any information.



Larry W. Peterson

Erwin, TN






Larry,

Yes as I've been running MTH DCS since the day it was released in o gauge. In fact MTH released engines with PS2 electronics before the DCS sets were available. My first 2 PS2 engines were a Premier NYC Dreyfuss and a UP FEF from the early 2000's.

Boy 3 amps ain't much power for running the one-gauge stuff. Maybe run 1 engine without smoke. Think you'd better off with a 10 amp Bridgewerks like Magnum SR.

Share this post


Link to post
Share on other sites


Hi Chuck

Thanks for the information.

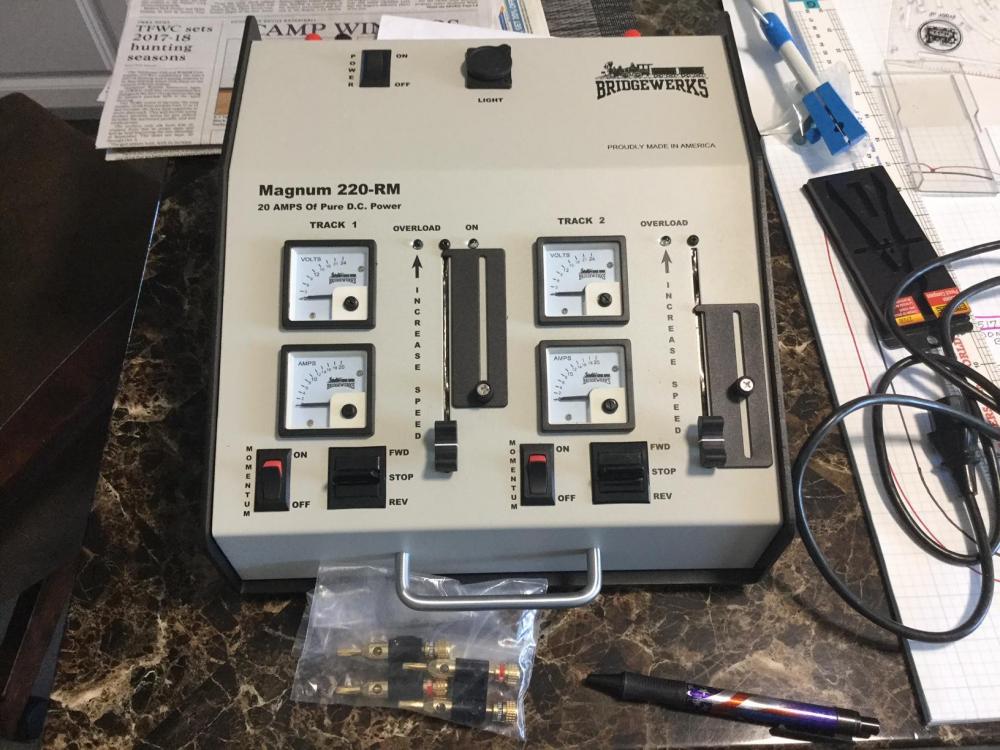

I have the Magnum 220 SR for my layout. I was wanting a separate one for just my test bench .

I had been using the USA 10amp but it is now not recommended for DCS / TIU  use. So that's why I was hunting a less expense less amps  Bridgwerks.



The Morrision you have pictured  has  a  msrp of $275.00. That is not bad if:

it's compatible and

3amps is enough power for testing my DCS big One gauge steam engines and diesels.

Or just go5 or 10 amps.

Larry








Share this post


Link to post
Share on other sites


Larry,



I use the 3 amp version all the time bench testing and loading soundfiles into PS3 engines as very rarely need more power than that unless I'm checking the stall current on motors. For that I have a 10 amp Astron DC power supply that I also use on the work bench.





Share this post


Link to post
Share on other sites


Chuck

Thanks for reply. I went ahead and ordered another bridgewerks. The 15 ampSR.  That way power will not be a issue.

Larry

Share this post


Link to post
Share on other sites



This is Mark, with Bridgewerks - and I thought that I'd chime in with some comments on the 'Morrison'.



This is intended as an entry level controller - 3A should be enough to run any ONE locomotive, but if you want to run more than one locomotive, you will be pushing it.   The Morrison does not have any accessory power outputs or some of the other features that you would find on one of the bigger controllers.



The Morrison was designed with several new features in it - mostly to make it more friendly for kids to run:

As with all bridgewerks controllers, there is a manual speed limiter.

On the Morrison, if you switch the direction from Forward to Reverse while the train is running, it pauses for a couple of seconds in between so that it is more gentle on the locomotive.   If you just toggle the F/R switch back and forth, it will stop and wait until you stop messing with it, and then accelerate using the selected momentum setting.



The very early designs, including the 60T had the T- handle throttle, and Bridgewerks migrated to slide controls like on Larry's 220RM - one of the weaknesses of that design is when kids spill soda on the unit, and it goes into the slot on the slide control.  The 'T' handle throttle connects to a potentiometer with a horizontal shaft, so it is less susceptible to dirt, soda or other beverages getting into the throttle.
